Truck Dashboard

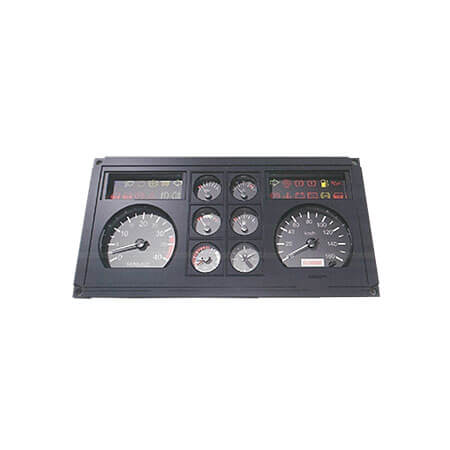

Truck Gauge & Dashboard Application Traditional gasoline engine cars, trucks Replacement parts for a used car and aftermarket  Special Features 1.Mechanical, digital, electronic and electrical hybrid applications 2.Speedometer (0-160 km/h, 52mm) 、Tachometer(0-4000 RPM, 52mm)、Fuel level gauge、Fuel pressure gauge, Fuel Temperature gauge、Water temperature gauge, Voltmeter gauge and other warning light 3.Voltage：12/24V (Optional) 4.Signal: Analog / Digital (Optional) 5.LED Backlight 6.Material：Plastic 7.Black dial face and White pointer 8.Flat glass lens 9.Stable, heavily damped, providing highly accuracy 10.Reverse polarity protection 11.Waterproof, rustproof 12.Abnormal alarm 13.100% made in Taiwan Description For traditional gasoline engine cars and trucks, N4AI EGNAS provides the all-singing, all-dancing car gauge cluster with robust construction. This is an automotive instrument cluster that mixes mechanical, digital, electronic and electrical applications which integrated tachometer (0-4000 RPM, 52mm), speedometer (0-160 km/h, 52mm), fuel gauge, Oil pressure gauge, oil temperature gauge, water temperature gauge, voltmeter, and various warning signals, suitable for all kind gasoline engine cars and trucks.

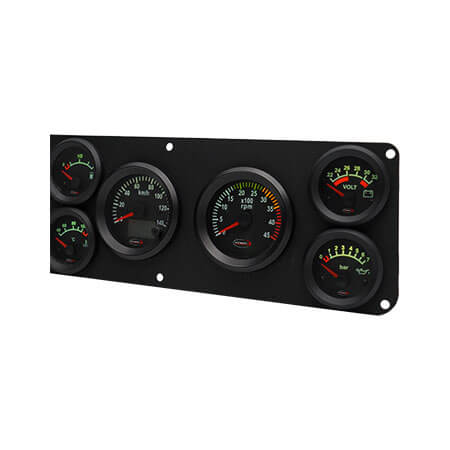

Military Gauge & Dashboard Application Military vehicle  Special Features 1.Mechanical, digital, electronic and electrical hybrid applications 2.Speedometer (0-160 km/h, 52mm) 、Tachometer(0-4000 RPM, 52mm)、Fuel level gauge、Fuel pressure gauge, Fuel Temperature gauge、Water temperature gauge, Voltmeter gauge and other warning light 3.Meet the military specification MIL-S-901 for High Impact mechanical shock and MIL-G-18997 for environmental protection  4.Voltage：12/24V (Optional) 5.Signal: Analog / Digital (Optional) 6.LED Backlight 7.Material：Plastic 8.Black dial face and White pointer 9.Flat glass lens 10.Stable, heavily damped, providing highly accuracy 11.Reverse polarity protection 12.Waterproof, rustproof 13.Abnormal alarm 14.100% made in Taiwan Description N4AI EGNAS has develop the military automotive gauge, the product reached the requirements of military regulations in terms of environment and various impacts and tolerances, and meet the military specification MIL-S-901 for High Impact mechanical shock and MIL-G-18997 for environmental protection. We have mature technology and long-term development experience in cooperation with military vehicles manufacturers. Our military vehicle instrument integrated speedometer (0-140 km/h, 52mm / 2-1/16 dial.), tachometer (0-4500 RPM, 52mm / 2 1/16 dial.) , Fuel level gauge (0-1/2-1), water temperature gauge (40-100℃), voltmeter (22-32) and oil pressure gauge (0-7 bar), LED backlight makes the screen clearer and easier to read.

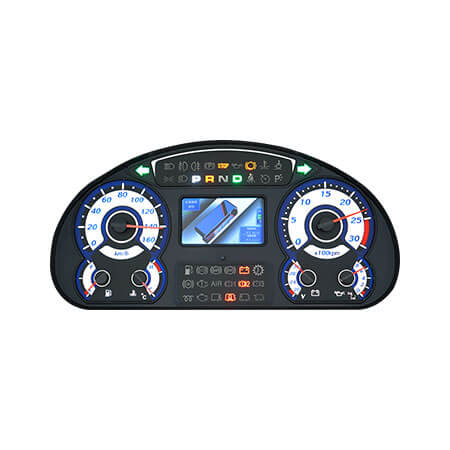

Bus Gauge & Dashboard Application Bus Special Features 1.Mechanical, digital, electronic and electrical hybrid applications 2.Speedometer (0-160 km/h, 52mm) 、Tachometer(0-4000 RPM, 52mm)、Fuel level gauge、Fuel pressure gauge, Fuel Temperature gauge、Water temperature gauge, Voltmeter gauge and other warning light 3.I/F：Can-bus 4.Voltage：12/24V (Optional) 5.Signal: Analog / Digital (Optional) 6.LED Backlight 7.Material：Plastic 8.Black dial face and White pointer 9.Flat glass lens 10.Stable, heavily damped, providing highly accuracy 11.Reverse polarity protection 12.Waterproof, rustproof 13.Abnormal alarm 14.100% made in Taiwan Description This highly integrated bus gauge includes a speedometer (0-160 km/h, 52mm), tachometer(0-3000 RPM), fuel level gauge, oil pressure gauge, fuel temperature gauge, water temperature gauge, voltmeter gauge and other warning symbol. The TFT-LCD screen in the center of the dashboard help to monitor all real-time conditions of the bus, such as door close or opening. This product is suitable for most buses. We also provide customization options, please contact us for details.

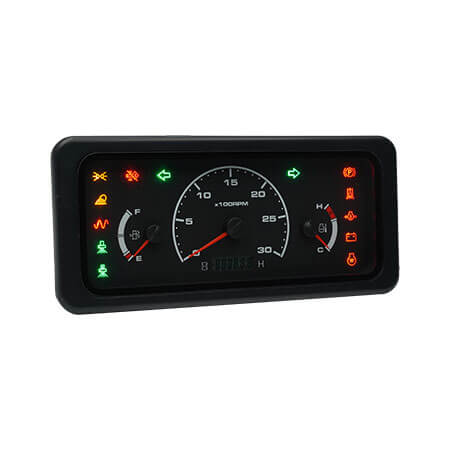

Heavy equipment Construction vehicle gauges Application Heavy equipments, construction vehicles Special Features 1.digital 2.Tachometer (0-3000 RPM), fuel level gauge (E-F), water temperature gauge (C-H), turning lights, battery level and other functions. 3.I/F：Can-bus 4.Voltage：Digital 5.LED Backlight 6.Material：Plastic 7.Black dial face and White pointer 8.Flat glass lens 9.Stable, heavily damped, providing highly accuracy 10.Reverse polarity protection 11.Waterproof, rustproof 12.Abnormal alarm 13.100% made in Taiwan Description The heavy equipment gauge & dashboard developed by N4AI EGNAS provides durable, sturdy, anti-vibration and high-precision, which integrating tachometer (0-3000 RPM), fuel level gauge (E-F), water temperature gauge (C-H), turning lights, battery level and other functions, especially suitable for all kinds of construction vehicles (heavy equipments) that must operation in harsh environments for a long time. We retain long-term supply for international agricultural machinery manufacturers, and can provide customers with any required standard products and customized services. Please contact us for details.
