Turbo Gauge

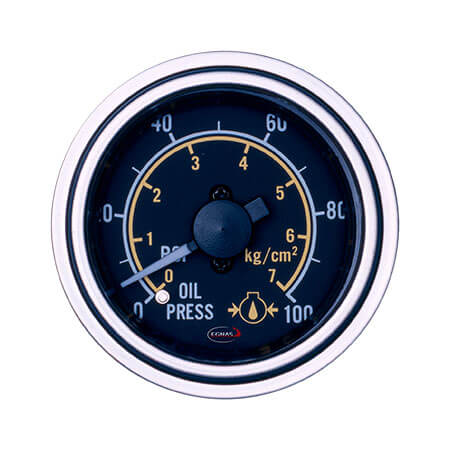

52mm Mechanical Oil Pressure Gauge MB62670 Application Truck, Tank Truck, Gas truck, Fuel truck, Fank trailer, double tanker, Road train, Sewer vacuum truck Special Features 1.Type: Mechanical 2.Diameter: 52 mm (2-1/16") 3.Display: Analog 4.Scale: 0-100 PSI/ 0-7 kg/cm2 5.Size: 1 / 8-27 NPT 6.Voltage：12/24V (Optional) 7.Material: Plastic 8.Anti-scratch glass lens and plastic Cases for corrosion resistance 9.Waterproof and UV Protection 10.Tubing kit: P/N TU002 (Optional) 11.100% made in Taiwan Description The mechanical oil pressure gauge provided from N4AI EGNAS has the dial face of 52mm (2-1/16”) and with 0-100 bar scale range. The characteristics including precision and robust. This car gauge features anti-scratch glass and the outer shell is made of corrosion-resistant materials, both metric-english units are supported by customer require,  providing more design flexibility. This product has been sold to well-known automobile brands for more than 30 years, with mature technology and stable quality. It can be used for aftermarket and as a replacement part.

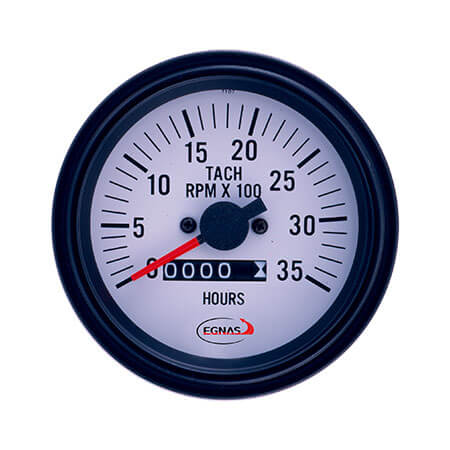

85mm Mechanical  Tachometer MS62090 Application Truck, pick-up truck, Lorry, etc.  1.Type: Mechanical 2.Diameter: 85 (3-3/8"dia.) 3.Scale: 0-3500 RPM / 9999.9 Hours, 5 / 8 -18 UNF ratio 0.5 to 1.0, 55000 rev. / hour 4.Voltage：12/24V (Optional) 5.Material: Plastic 6.Anti-scratch glass lens 7.Plastic Cases for corrosion resistance 8.Cable drive / Cable transmission 9.Waterproof, rustproof and UV Protection 10.100% made in Taiwan Description N4AI EGNAS’s mechanical tachometer has the dial face of 3-3/8" with 0-35 bar scale range (0-3500 RPM) and 9999.9 hour, providing high accuracy. Scratch-resistant glass and the plastic shell can resist corrosion and extend product life. The matric-english system can be selected according to customer needs. It is easy to install and suitable for all types of trucks and pick-up trucks and can also be used for aftermarket and as a replacement part.

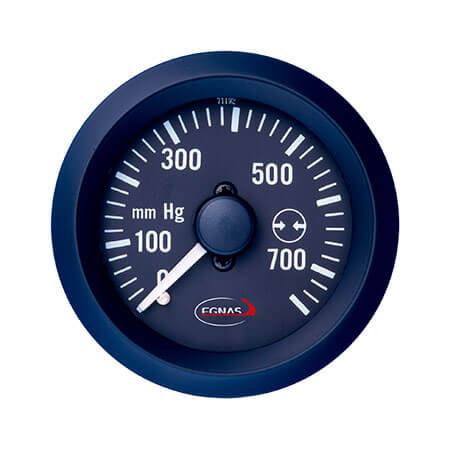

52mm Mechanical Vacuum Gauge MT62620 Application Diesel trucks, Lorry, Heavy industrial equipment, etc. Special Features 1.Type: Mechanical 2.Diameter: 52 mm (2-1/16") 3.Scale: 0- 700 mm Hg 4.Voltage：12/24V (Optional) 5.Material: Plastic 6.Anti-scratch glass lens 7.Plastic Cases for corrosion resistance 8.Steable, anti-vibration, providing highly accuracy  9.Waterproof, rustproof and UV Protection 10.tubing kit : P/N TU001 11.100% made in Taiwan Description N4AI EGNAS's classic styled 52mm (2-1/16") mechanical vacuum gauge provides 0-700mm Hg point scale range. With high accuracy, durability and high reliability, this product is suitable for various types of large heavy industrial equipment such as trucks, freight cars and diesel engines equipments. We provide customized design for car manufacturers. The product can be used in harsh environments, and it can also be used for aftermarket and as a replacement part.

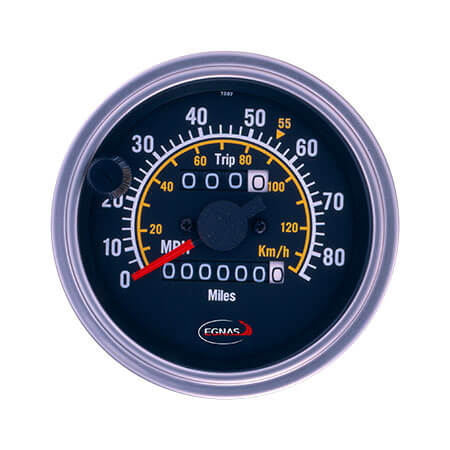

85mm Mechanical Speedo / Odometer Gauge MS62110 Application Lorry/truck, tanker, gas truck, double-decker tanker, automobile, etc. Special Features 1.Type: Mechanical 2.Diameter: 85mm (3-3/8" dia.)  3.Scale: 0-85 MPH / 0-140 Km/h        999999.9 Miles, 1000 rev. / Mile 4.Voltage：12/24V (Optional) 5.Material: Plastic 6.Anti-scratch glass lens 7.Plastic Cases for corrosion resistance 8.Stable, anti-vibration, providing highly accuracy  9.Waterproof, rustproof and UV Protection 10.100% made in Taiwan 11.Cable transmission Options:  1.Optional 12V / 24V, by customer request 2.Metric-English units are supported by customer require 3.The color of the bezel and the dial face of the gauge are optional for customer. (Black, white or other colors) 4.Scale can be customized 5.The color of the dial face, pointer and text can be customized according to customer needs 6.Optional waterproof grade by customer request Description N4AI EGNAS 85mm speedometer/odometer displays 0-85 MPH in white color and 0-140 km/h scale in yellow color on the black dial face, and shows the Trip and Miles by numbers. The scratch-resistant glass ensures readability, and the corrosion-resistant  material implement longer product life. This product has been sold in global automotive market for decades, the product has mature technology and stable quality, it can be used for aftermarket.

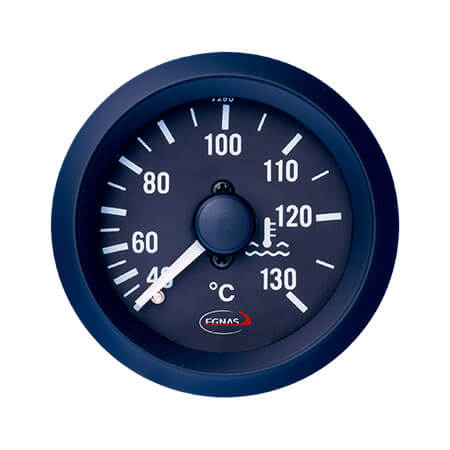

52mm Mechanical Water Temperature Gauge MS62630 Application Truck, pick-up truck, Tank Truck, Gas truck, Fuel truck, Fank trailer, double tanker, Road train, Sewer vacuum truck... Special Features 1.Type: Mechanical 2.Diameter: 52 mm (2-1/16") 3.Technology: Analog  4.Scale: 40- 130°C 5.Voltage：12/24V (Optional) 6.Material: Plastic 7.Anti-scratch glass lens 8.Plastic Cases for corrosion resistance 9.Stable, anti-vibration, providing highly accuracy 10.Waterproof, rustproof and UV Protection 11.Accessories: 48" PVC Capillary Tube (Optional) 12.100% made in Taiwan Description The N4AI EGNAS 52mm water temperature gauge has 40- 130°C scale range and supplied with 48” PVC capillary tube,  which is very easy to install. For decades, this water temperature gauge has been steadily supplied to world-renowned automobile brands, and our factory has been certified by global automotive manufacturers. The product can be customization by customer request, such as interface, metric-english, waterproof grade and colour, etc., ensure to meet customer design requirements.
